RB19

Oracle Red Bull Racing RB19

2023
Historic Year for Red Bull and Verstappen

Constructors’ and drivers’ titles with 21 wins out of 22 rounds
Honda reappears in power unit name

In 2023, Red Bull and Max Verstappen set new records in Formula 1 history. Out of the 22 rounds, Red Bull won 21, with Verstappen claiming 19 victories to clinch both the constructors’ and drivers’ titles once again. Both were record-setting results.

The second year of F1 with the new 2022 regulation cars resulted in a crowded field, but Red Bull stood out. Building upon its advantages from the previous year, Red Bull rose to a completely different level. Verstappen drove like a champion, keeping the competition at bay with his overwhelming speed and ever-improving race strategies throughout the season.

The RB19 built upon the RB18 concept with high potential. In the early stages of the season, the RB19 was so close to its predecessor as improvements were hard to find. The only way to recognize updates was through its updated aero parts throughout the season. The side pontoons were redesigned twice during the season, and this bodywork further improved the aerodynamic efficiency. The characteristic pull-rod front and push-rod rear suspension configuration was the same as the RB18. Despite the highly complex configuration, Red Bull seemed to have prioritized aerodynamic benefits gained by lowering the center of gravity over simplification.

The biggest improvement of the RB19 was weight reduction. As the RB18 was overweight, Red Bull made weight reduction a top priority in its development. This reduced the RB19’s weight to below the minimum allowed. This was seen as the biggest factor in its improved performance.

In contrast, the RB19’s aerodynamic advantage to effectively generate high downforce at low vehicle height made it a poor choice for tracks with bumpy surfaces that required a higher vehicle height, or tracks with long straights that generated high downforce. On high downforce tracks, such as Silverstone and Spa-Francorchamps, the skid plates under the car would wear so badly that the car’s height had to be raised pre-race to avoid violating regulations post-race. This was even more pronounced on bumpy courses, where cars could not generate the necessary downforce. In fact, the only race Red Bull failed to win was Singapore, held on a bumpy road course.

As for the power unit, development that aimed at increasing power had been frozen, allowing only modifications that increased reliability. HRC, which continued to supply the power units, completed the 2023 model aiming to further improve reliability, and therefore further increasing its existing potential. The engine’s name was changed to Honda RBPTH 001, bringing the Honda name back to F1.

In Mayr, Honda also announced that it would resume its F1 activities as a power unit supplier from 2026. The new partner was Aston Martin, and the joint venture with Red Bull, which had already publicly announced its joint development with Ford, would end in 2025.

Sergio Perez claimed two pole positions and finished within the points 19 times, contributing to Red Bull taking the top two drivers’ positions. The team amassed 860 constructors’ points, overwhelming the closest challenger, Mercedes’ 409 points. Red Bull more than doubled the points of the second place manufacturer to claim the title.

The early RB19 was almost indistinguishable from the final spec 2022 RB18, so much so that it was already approaching perfection in terms of aerodynamic solutions from the initial concept. Although the car was radically updated later, the aerodynamic advantage was absolute throughout the season, enabling the RB19 to win 21 out of 22 races, setting a new record.

The early RB19 was almost indistinguishable from the final spec 2022 RB18, so much so that it was already approaching perfection in terms of aerodynamic solutions from the initial concept. Although the car was radically updated later, the aerodynamic advantage was absolute throughout the season, enabling the RB19 to win 21 out of 22 races, setting a new record.

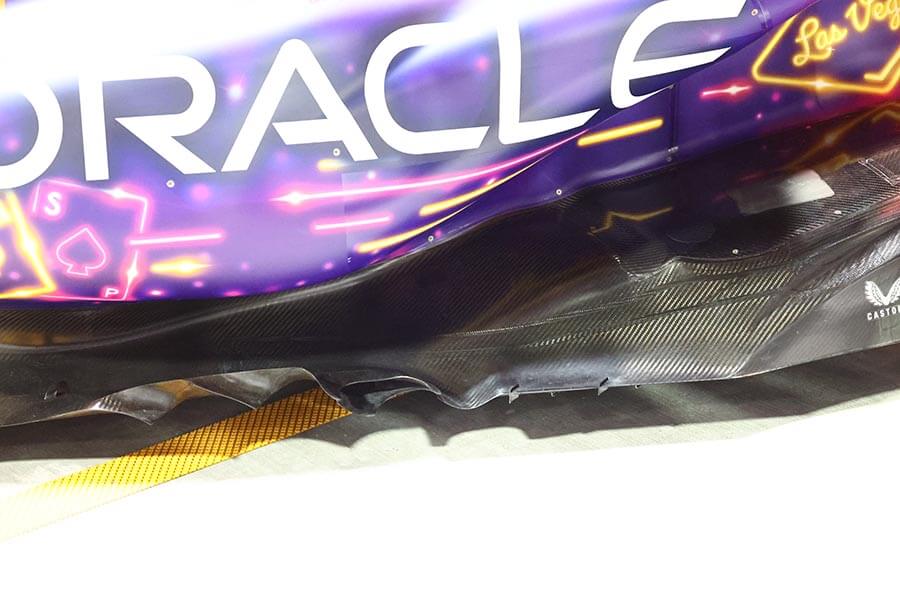

Floor edge in Round 21, Las Vegas. Of the four fins at the tips of the floor, the outer two floor tunnels disperse air from the center of the panel. This shape also evolved to create a diffuser effect and is now called a “side diffuser.” The side pontoons were also modefied to be smaller and thinner during the season.

Floor edge in Round 21, Las Vegas. Of the four fins at the tips of the floor, the outer two floor tunnels disperse air from the center of the panel. This shape also evolved to create a diffuser effect and is now called a “side diffuser.” The side pontoons were also modefied to be smaller and thinner during the season.

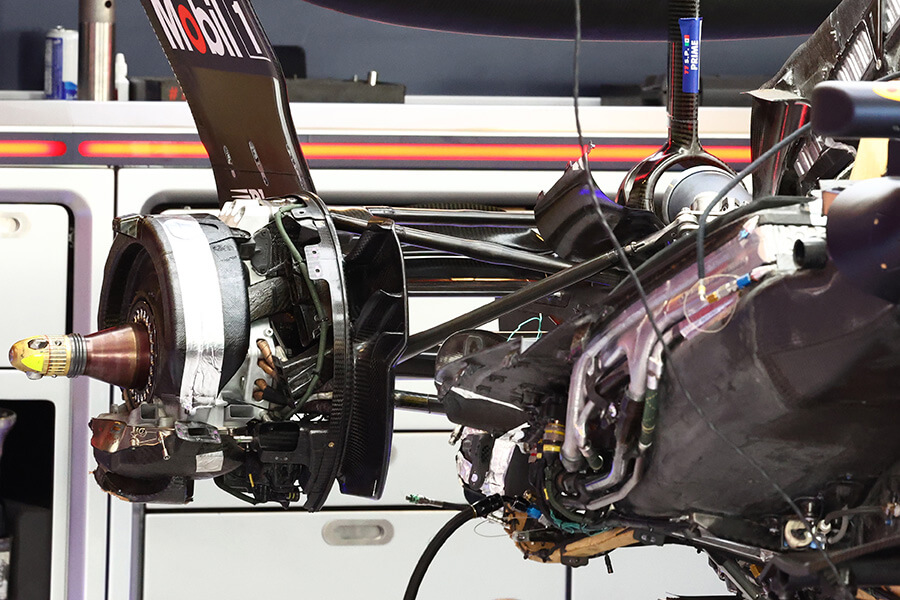

Raised RB19 rear suspension. The push-rod configuration with links and dampers positioned on the gearbox was probably chosen as Red Bull did not want interference with the floor design. The lower arms were mounted very high in order to keep the diffuser area as large as possible.

Raised RB19 rear suspension. The push-rod configuration with links and dampers positioned on the gearbox was probably chosen as Red Bull did not want interference with the floor design. The lower arms were mounted very high in order to keep the diffuser area as large as possible.

Chassis

Chassis RB19
Monocoque Undisclosed
Front suspension Undisclosed
Rear suspension Undisclosed
Transmission Undisclosed
Wheels BBS
Brake callipers Brembo
Tires Pirelli
Electronics Undisclosed
Fuel Esso Synergy
規定最低重量 798㎏ (including driver (80kg), excluding fuel)

Power unit

Power unit Red Bull RBPTH001
Power unit components ICE (engine) / TC (turbocharger) / MGU-K / MGU-H / ES (energy storage) / CE (control unit)
Cylinders 6 (in accordance with regulations)
Displacement 1,600cc
Maximum revs 15,000rpm
Bank angle 90 degrees
Valves 24
Maximum revs 15,000rpm
Maximum fuel flow 100kg/h (10,500rpm)
Fuel load 105kg
Fuel injection Direct injection (1 per cylinder, 500bar max.)
過給機 Coaxial single-stage compressor, turbine
Fuel and lubricants Exxon Mobil
Engine minimum weight 150㎏
Energy regeneration system
Mechanism Hybrid energy regeneration with motor-generator unit. MGU-K connected to crankshaft, MGU-H to turbocharger.
Energy storage unit Lithium-ion battery (weight: 20-25 kg); stores up to 4 MJ per lap.
MGU-K

Maximum revs
50,000rpm

Maximum output
120kW

Maximum regeneration
2MJ per lap

Maximum release
4MJ per lap

MGU-H

Maximum revs
125,000rpm

Maximum output
Unlimited

Maximum regeneration
Unlimited

Maximum energy release
Unlimited
