RB15

Aston Martin Red Bull Racing RB15

2019
After Anticipation and Doubt, Joy from First Victory in Honda’s Fourth F1 Era

Partnership with Red Bull Begins
Evolved RA619H Achieves Great Results

Honda was under much pressure in 2019 when it began to supply power units to Red Bull. Max Verstappen had won four grans prix the previous year, and Red Bull had claimed both the drivers’ and constructors’ titles four years in a row since 2010, while Honda, without a single podium finish in the four years since its return to F1, seemed to be an unworthy partner. For Honda, which has set its sights on winning the title rather than simply winning a grand prix, this was the perfect opportunity to set a high hurdle for itself in a battle where failure was not an option.

For Honda, the high-speed combustion adopted in the previous year’s RA618H Spec 3 was a major advantage which the RA619H inherited to achieve high output. The season started with both expectation and anxiety, with emphasis placed on strengthening each part of the car, including the frame, to withstand the engine’s high output and improving reliability.

The Red Bull RB15 was based upon the RB13, which was designed by Chief Technical Officer Adrian Newey and adapted to a wider body in 2017, and featured centerline cooling to slim down the overall width and refined aero rake development to efficiently generate downforce. Installing the Honda power unit, Red Bull prioritized power, making modifications to increase the size of the induction pods to allow more air flow. Improvements were made throughout the car to increase the efficiency of the intake, exhaust, and cooling systems and to help improve the performance of the power unit.

The RB15 featured a significantly improved front suspension. The concept of the Red Bull chassis was to have a large forward lean angle (rake angle), which controlled the downforce generated by the floor. The RB15 inherited this concept, while lowering the upper wishbone mounting to reduce nose dive under braking. This improvement was made to keep the clearance between the front wing and the road surface as constant as possible and to aerodynamically reduce the car’s jittery behavior. However, instability during cornering persisted as a major issue.

Honda, confident of the high power produced by high-speed combustion, and the durability and reliability of the car, introduced the Spec 3 engine in Round 8, France. Combustion was improved, and the compressor was updated, departing from a focus on reliability to once again pursuing higher power output. The Spec 3 was a failure in France as it could not cope with the extreme European heat wave, but after a short interval, the true value of the enhancements was demonstrated. Verstappen took a dramatic victory from behind in Round 9, Austria to give Red Bull Honda, and indeed Honda in its fourth F1 era, the first victory. The improved compressor gave the team a high altitude advantage, a major factor in this long-awaited victory for Honda.

Verstappen’s third place in the opening round gave Honda its first podium in its fourth F1 era, boosting its confidence in the power unit’s enhancements, and relief. However, despite consistently good results, the champions Mercedes were formidable, and victory remained elusive as mid-season approached. The RA619H Spec 3 was the breakthrough, and the team took three wins (Round 9, Austria, Round 11, Germany and Round 20, Brazil) for the season.

At the same time, the team was in a precarious situation. Pierre Gasly, promoted from Toro Rosso, was unable to recover from a serious crash in pre-season testing and was unable to adapt to the car’s instability, resulting in his move back to Toro Rosso in the first half of the season. Alexander Albon, who had just joined Toro Rosso, replaced Gasly at Red Bull, and although he drove well throughout the season, was unable to finish on the podium. Despite Verstappen’s consistent speed in a car that was considered to be hard to handle, it was a difficult season for Albon.

Verstappen won three races during the season, and in Round 12, Hungary, gave Honda its first pole position in its fourth F1 era. In Round 20, Brazil, Toro Rosso’s Gasly finished second after Verstappen, giving Honda power units a 1-2 victory. For Red Bull, Verstappen’s three wins, the same as the previous year, were considered the “minimum quota,” but for Honda, it was a season in which a high hurdle was overcome, and it could see the light at the end of the tunnel.

The RB15 was Red Bull’s first F1 car to be powered by a Honda power unit. While its silhouette did not change much from the previous year’s RB14, a large cape was attached under the nose in response to the ban on additional front wing devices, and the in-wash was a trial-and-error process. The more compact RA619H engine was installed, and the rear half was narrower.

The RB15 was Red Bull’s first F1 car to be powered by a Honda power unit. While its silhouette did not change much from the previous year’s RB14, a large cape was attached under the nose in response to the ban on additional front wing devices, and the in-wash was a trial-and-error process. The more compact RA619H engine was installed, and the rear half was narrower.

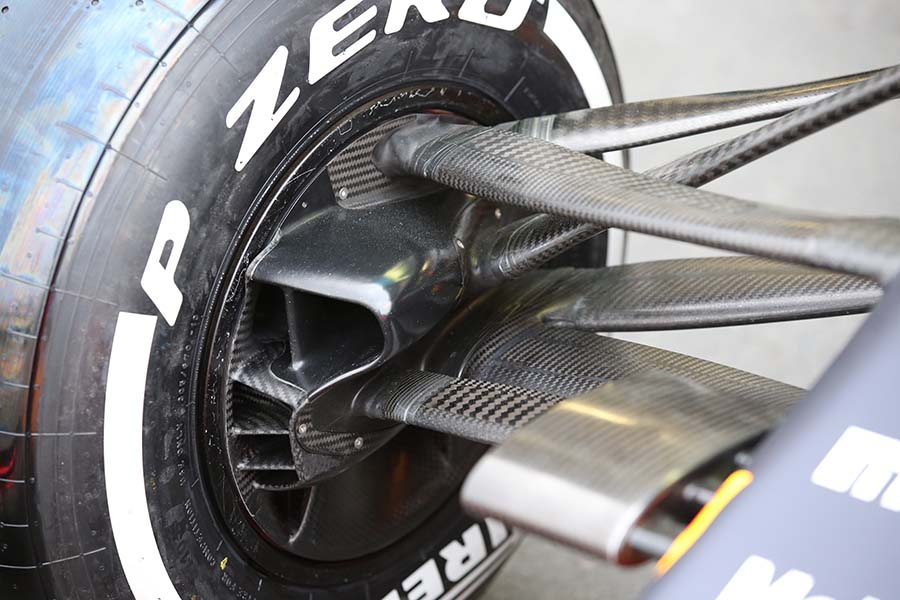

In order to further pursue the aero rake that Red Bull pioneered, the front suspension upper arms were changed to a front-rear split starting with the RB15. This layout made it possible to increase the angle between the front and rear legs, minimizing posture changes under braking.

In order to further pursue the aero rake that Red Bull pioneered, the front suspension upper arms were changed to a front-rear split starting with the RB15. This layout made it possible to increase the angle between the front and rear legs, minimizing posture changes under braking.

In the front part of the floor, which could be freely developed, the combination of a large bargeboard, a two-tiered pod wing, and a canard wing was remarkable. In the closing rounds, two canard wings were stacked on top of each other, and with the mirror design, rear airflow was precisely controlled. This configuration was basically used until the 2021 RB16B.

In the front part of the floor, which could be freely developed, the combination of a large bargeboard, a two-tiered pod wing, and a canard wing was remarkable. In the closing rounds, two canard wings were stacked on top of each other, and with the mirror design, rear airflow was precisely controlled. This configuration was basically used until the 2021 RB16B.

Chassis

Chassis RB15
Monocoque Original carbon fiber/honeycomb composite
Front suspension Aluminum alloy uprights, carbon fiber composite double wishbones
Rear suspension Aluminum alloy uprights, carbon fiber composite double wishbones
Transmission Red Bull Racing 8-speed hydrualic, longitudinally mounted
Wheels OZ Racing
Brake callipers Brembo
Tires Pirelli
Electronics MESL standard electronic control unit, and Honda-made
Fuel Esso Synergy
Minimum weight 743㎏ (including driver (80kg), excluding fuel)

Power unit

Power unit Honda RA619H
Power unit components ICE (engine) / TC (turbocharger) / MGU-K / MGU-H / ES (energy storage) / CE (control unit)
Cylinders 6 (in accordance with regulations)
Displacement 1,600cc
Maximum revs 15,000rpm
Bank angle 90 degrees
Valves 24
Maximum revs 15,000rpm
Maximum fuel flow 100kg/h (10,500rpm)
Fuel load 105kg
Fuel injection Direct injection (1 per cylinder, 500bar max.)
Supercharger Coaxial single-stage compressor, turbine
Fuel, lubricants Exxon Mobil
Engine weight 145kg
Energy regeneration system
Mechanism Hybrid energy regeneration with motor-generator unit. MGU-K connected to crankshaft, MGU-H to turbocharger.
Energy storage unit Lithium-ion battery (weight: 20-25 kg); stores up to 4 MJ per lap.
MGU-K

Maximum revs
50,000rpm

Maximum output
120kW

Maximum regeneration
2MJ per lap

Maximum release
4MJ per lap

MGU-H

Maximum revs
125,000rpm

Maximum output
Unlimited

Maximum regeneration
Unlimited

Maximum energy release
Unlimited
