B・A・R Honda
006

B・A・R Honda 006

2004
First Victory in Sight

Round 9, U.S. #10 Takuma Sato

006 a consistent contender in 2004
Sato’s driving brings Japanese dreams to the podium

In 2004, Japanese fans were given a big dream. A dream so close to reality.

Jenson Button and Takuma Sato’s BAR Honda 006 cars were in the thick of the action throughout the season, battling for top positions. Jenson Button finished on the podium in second place, while Sato became the first Japanese driver since Aguri Suzuki in 1990 to finish on the podium (third) at the U.S. GP. The dream of a Japanese driver winning the championship was once step closer to reality.

The BAR Honda 006 switched to Michelin tires instead of the Bridgestones used until the previous year. This decision was made by Jeff Willis, who was in charge of the 006’s development.

BAR Honda 006 chased the reigning “Prancing Horse”

BAR Honda 006 chased the reigning “Prancing Horse”

Prior to the end of the 2003 season, testing of the BAR Honda 006 had already begun testing as a hybrid car, with a 005 chassis and a 006-spec back end. At this point, the tires were still Bridgestone, and as a result, BAR Honda was the only team that was able to do comparative testing of both tire manufacturers, which helped greatly in the development of the 006. The suspension and aerodynamics that Willis had developed matched well with the Michelins from the beginning, and the performance of the tires was ideal. The 006, based on the 005 Michelin hybrid, was launched and demonstrated amazing speed from the start of the season.

As the season progressed, however, problems began to appear. Although the 006 was generating strong downforce, the presence of flexible wings (flaps) was suspected. It was said that the car normally ran with a large amount of downforce, but the flexible wing activated in when accelerating from mid- to high-speeds, causing a sudden loss of downforce.

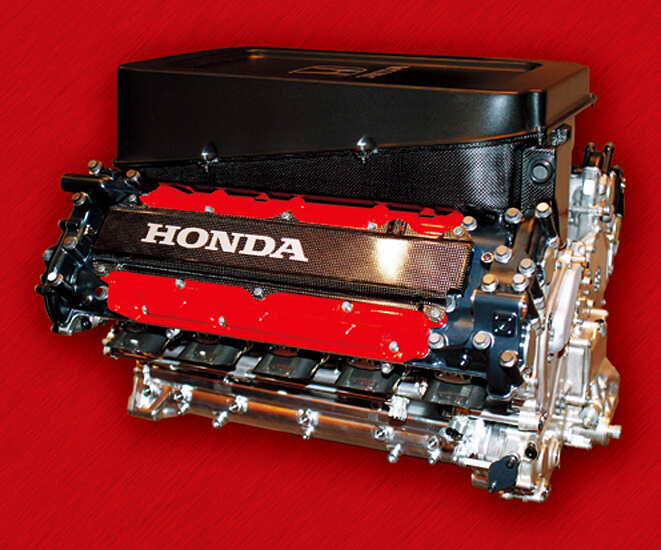

RA004E generated over 900 hp, contributing to the 006’s performance

RA004E generated over 900 hp, contributing to the 006’s performance

The FIA (Fédération Internationale de l'Automobile) mandated ribs (reinforcements) to control the flexibility, and the wing problem was settled, but the extreme nervousness of the 006 in high-speed turns, where downforce was rapidly lost due to speed changes and bumps, bothered the drivers. In addition, the car was hard on tires, and required extremely sensitive setups for the high-speed turns.

A forest of small wings on the back to regulate complex airflow

A forest of small wings on the back to regulate complex airflow

The 006 initially had a rear wing separator that was removed due to the violation, followed by the flexible wing “problem.” In addition, complaints were made at Monaco about Sato’s starting system which gave him an advantage in the start of each race. Sato was suspected of having “launch control.”

The result remained “suspected” and not “guilty,” and although changes such as programming were required, Sato’s rocket starts remained unabated, despite programming changes. In fact, throughout the season, Sato’s race starts were consistently better than teammate Jenson Button’s.

Either way, the 006 and Sato brought the dream of the first Japanese driver to win an F1 race very close to reality. His third place at Indianapolis 500 was a medal for Japanese F1 fans and officials, and was the moment that brought the Japanese dream closest to reality.

Sato and the 006 had created other memorable moments besides the third place result in the U.S. Grand Prix. At the Nürburgring, Sato qualified second, right next to Michael Schumacher in the Ferrari F2004, which had won pole position. The reigning World Champion considered Sato a “rival” who could not be ignored. The 006 made history as the car that brought Japanese drivers to the top of the sport.

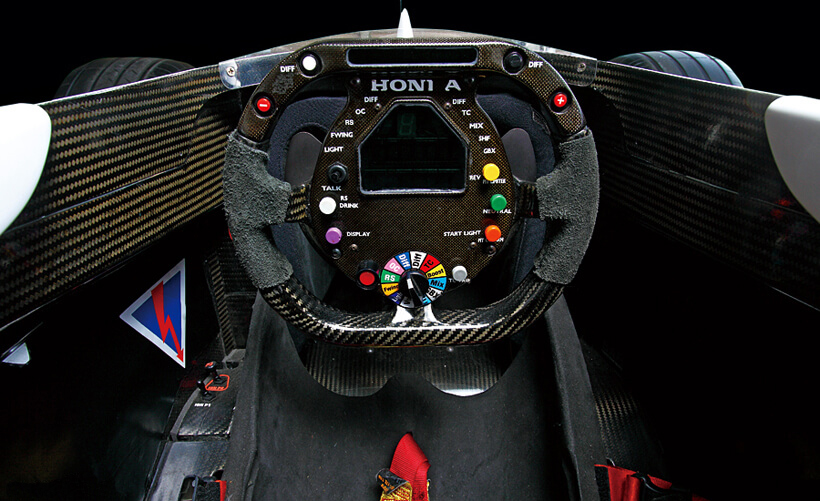

Modern era cockpit lined with numerous buttons. There is naturally no gearshift lever. Instead colorful adjustment dials occupy the center of the cockpit.

Modern era cockpit lined with numerous buttons. There is naturally no gearshift lever. Instead colorful adjustment dials occupy the center of the cockpit.

Chassis

Model BAR Honda 006
Transmission BAR/Honda and X Track 7^speed
Clutch Carbon-plate
Suspension (front and rear) Wishbone/push-rod and active torsion spring and rockers, mechanical anti-roll bar
Dampers KONI
Wheels BBS
Wheel diameter (front and rear) 13 inches
Wheel width Front: 312mm, rear: 360mm
Brakes Alcon (2 x 6 piston callipers)
Steering Rack-and-pinion, power assisted
Wheelbase 3150mm
Tread Front: 1460mm, rear: 1420mm
Weight 600kg
Fuel load 150 liters

Engine

Model Honda RA004E
Spark plugs NGK
Type Naturally-aspirated V10
V bank angle 90 degrees
Displacement 2998cc
Compression ratio Undisclosed
Maximum output 900 hp or more / 18500 rpm
Engine block Aluminum
Fuel injection Honda PGM-FI
Engine weight Undisclosed
